How do I configure my keyboard?
Note: You will currently need a second keyboard to complete the 3rd step of this process.
1. Create your configuration.
2. Compile the firmware with your configuration.
Use our web-based configurator tool to handle both steps at once: https://www.massdrop.com/mechanical-keyboards/configurator . See below for more information about our configurator.
If you are comfortable with programming and want to use QMK functionality that our configurator does not support, you can manually create and compile your configuration by checking out the official QMK repository: https://github.com/qmk/qmk_firmware . ALT Keyboard is in the folder "massdrop/ALT". QMK setup instructions are here: https://docs.qmk.fm/#/newbs
3. Load the firmware onto your keyboard.
To load the firmware onto your ALT keyboard, download the appropriate loader application for your computer's OS here: https://github.com/Massdrop/mdloader/releases/tag/1.0.3 . Then follow the instructions here: https://github.com/Massdrop/mdloader .
We are working with Jack and the other QMK contributors to get the loader application integrated into the next version of QMK Toolbox to simplify this loading process.

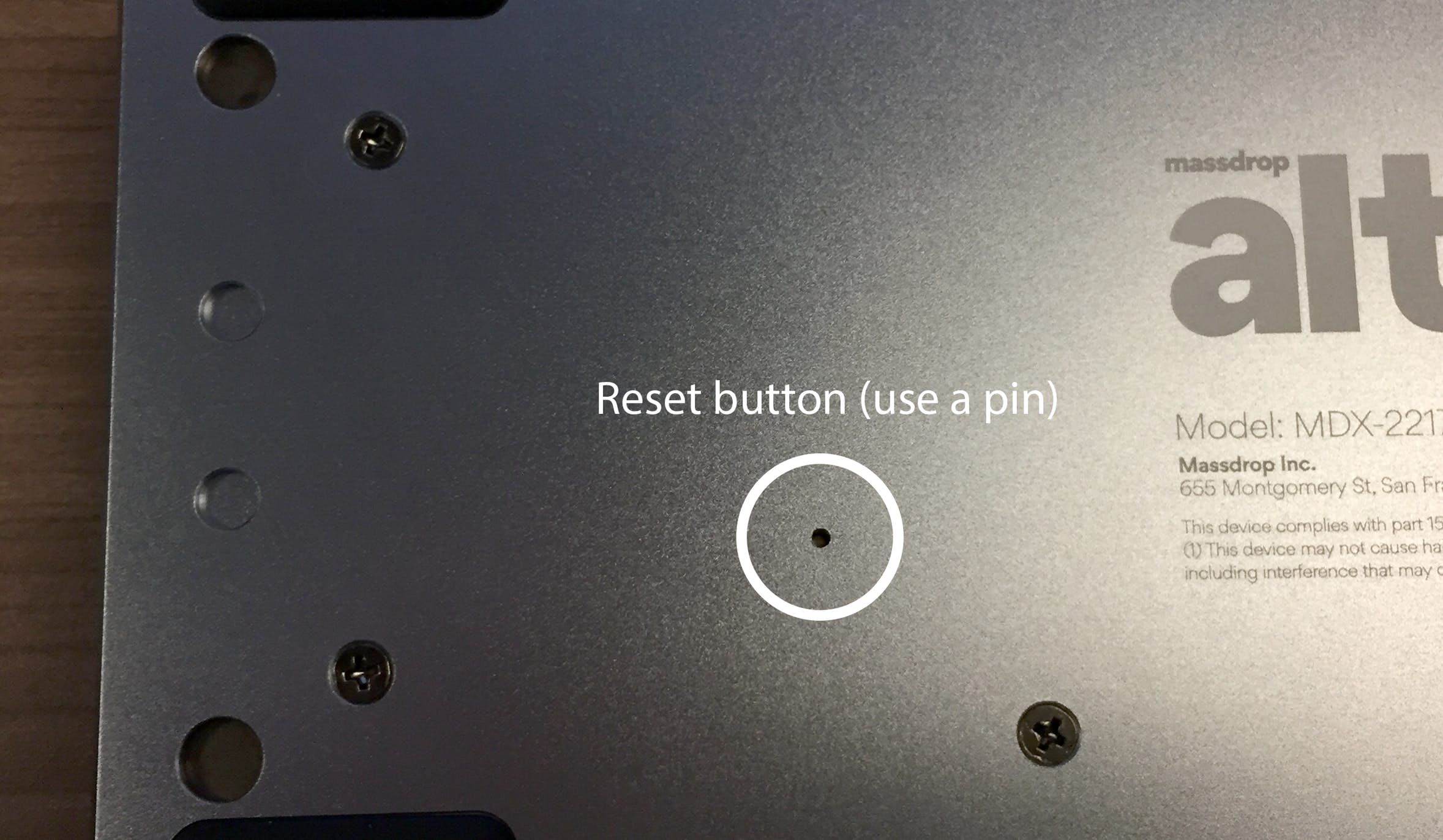

As part of the loading process, you will need to reset your ALT Keyboard. The reset button is in a hole on the under side of the keyboard:
